ESS 24V 48V 100Ah 200Ah Lithium Ion Battery Pack 5KW 10KW LiFePO4 Rack With Cabinet

Brand Name : CTS

Model Number : 48100

Certification : CE

Place of Origin : Hunan,China

MOQ : 10 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 untis per month

Delivery Time : 15-20 working days

Packaging Details : Polywood case

Battery Type : Lithium Ion, LiFePO4

cycle life : 6000 Times

Weight : 48KG

Warranty : 5 Year

Size : Customised Accepted

Contact Now

ESS 24V 48V 100Ah 200Ah Lithium Ion Battery Pack, 5KW 10KW LiFePO4 Rack Type Battery Packs With Cabinet For Energy Stora

Product Description

ESS 24V 48V 100Ah 200Ah Lithium Ion Battery Pack 5KW 10KW LiFePO4 Rack With Cabinet

Those modules support in parallel connection from 48v 50ah to 48v 3200ah
Meet the power consumption of different houses

Eight Features

1. Compatibility

Compatiable with various inverter brands, Victron, Goodwe, Pylon, Growatt, Solis, Lux, Solax, Sofar, Sacolar

2. Expansibility

Support max 64pcs in parallel, which is equals to 48v 6400ah, meet all different house demands.

3. Efficiency

Features 99% Operating Efficiency vs 80% for AGM batteries. An equivalence of adding 20% additional solar panels to your current system.

4. Longevity

A+++ Cells with 6000cycles 80%DOD, 15 years of use even if you deep discharge it every day.

5. Fastest shipment

Samples ready in a week.

6. Quickest installation

Plug and play, all installing material for free, easy and quick.

7. Safest structure

All Cells are bolted together with heavy plates and ABS holder for very reliable connections internally

8. RS485/ CAN

RS485 and CAN on from panel with RJ45 port, plug and play.

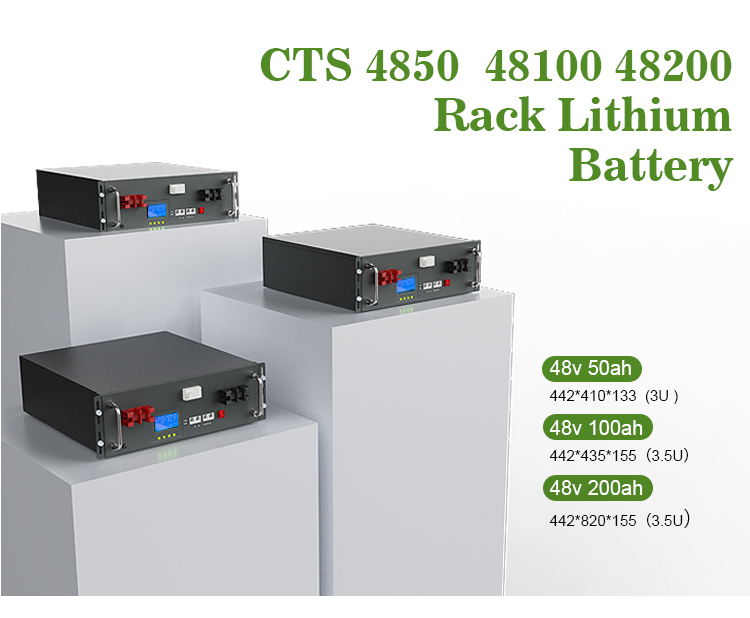

Detailed design

MODEL	CTS4850R	CTS48100R	CTS48200R
ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry	LiFePO4	LiFePO4	LiFePO4
Rated Capacity	50Ah	100Ah	200Ah
Rated Voltage	51.2V	51.2V	51.2V
Energy	2.56kWh	5.12kWh	10.24kWh
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	442410133mm	442435155mm	442820155mm
Weight	28Kg	48Kg	82Kg
DISCHARGE SPECIFICATIONS
Discharge Cut-off Voltage	40V	40V	40V
Max Continuous Discharging Current	50A	100A	150A
Recommended Disharge Current	25A	50A	100A
CHARGE SPECIFICATIONS
Charging Limited Voltage	57.6V	57.6V	57.6V
Max Charging Current	50A	100A	150A
Recommended Charge Current	25A	50A	100A
Working Temperature Range	Charge: 0~45℃ discharge : -20~60℃
Recommended Operating Temperature	15~35℃
Recommended Storage Temperature & Humidity Range	15~35℃, 45~75%RH

Why choose us

	CTS		Other
Plastic holder	1.We use customized plastic holder between each cells for better insulation, so when the operator install batteries, there will be no danger.		No holder between cell, insulation need to be concerned.
Top extension	2.There is an extension at the top of the bracket. When there is a shock or heavy drop or vibration, battery itself will not be the first to bear the brunt	Have a metal top extension in the first one, no top extension in the second
Unblocked explosion-proof valve	3.The explosion-proof valve is not blocked, the physical structure safety of the cell is ensured		Both has blocked explosion-proof valve, not meet the cell safety using requirements
BMS with cover	4.BMS is well protected by metal cover, prevent damage for shock		No cover on both BMS
Laser welding+Screws	5. We use laser welding around the srew to further strengthen the connection to completely eliminate the risk of screw falling. Laser welding also reduce the contact surface between the screw and the bus bar to enhance current capability. This laser welding can also reduce internal resistance and reduce power consumpution. The user can get more power.		First has untidy welding, big risk of damage cables, second only srews.
Orderly cable arrangement	6. Orderly cable arrangement can reduce poor connector contact, short circuit and open circuit between wires.		lack of standardization, cables go through basbar in the first, disorder cables in the second

Five exclusive designs

1. 3% power over specification

A+++ cells, buying 100Ah,you get 103Ah

2. Internal protection

ABS holder higher than bus bar Against shock/heavy drop above the metal lids.

3. Comprehensive monitoring

4 temperature sensors and 16 voltage sensor Each cell is under control by BMS

4. Double strong connection

Double strong connection Busbar is connected by screws and laser welding, double insurance

5. Read battery infomation on the computer

With RJ45 wires ,you can read battery info on the computer via RS485Information includes cell voltage, total voltage, cell
 temperature, SOC, and so on
